Description
Bobrick #1082G DuraLineSeries Gapless Toilet Partitions — overhead-braced compact grade laminate compartments with barrel hinge and standard bracket.

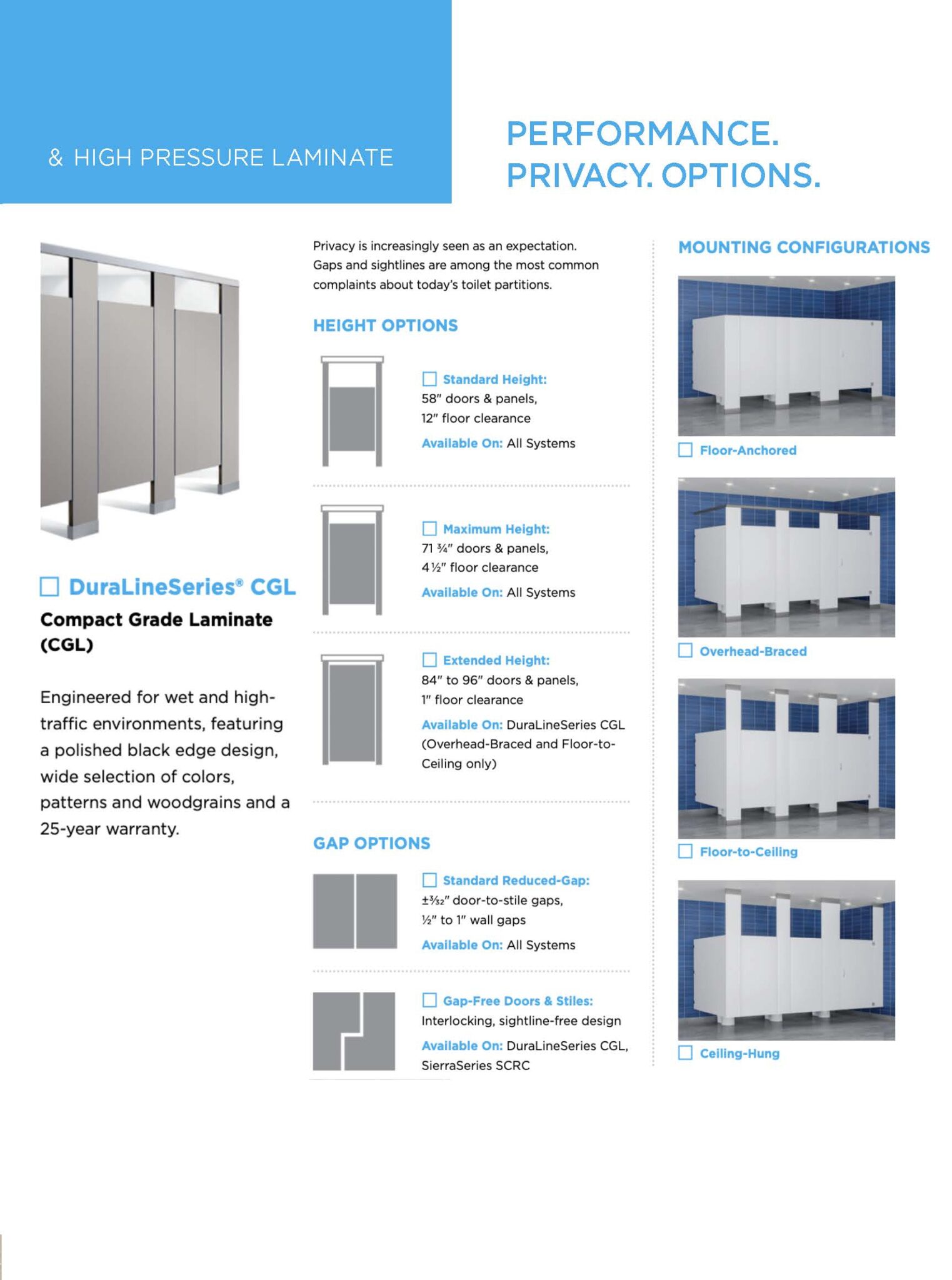

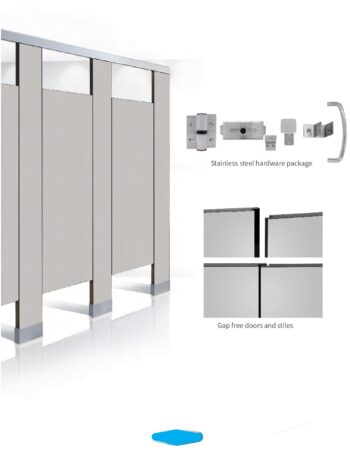

Gap-Free Doors & Stiles
Interlocking, sightline-free design eliminates gaps between doors and stiles for improved privacy.
Specifications
- Height: 58″ (1473 mm) doors and panels
- Floor clearance: 12″ (305 mm)
- Mounting: Overhead-braced (1082 Series)
- Stiles: ¾” (19 mm) solid compact grade laminate — standard widths 3″–24″
- Doors: ¾” (19 mm) solid compact grade laminate — 22″–37″ wide (inswing or outswing)
- Panels: ½” (13 mm) solid compact grade laminate — up to 84″ wide
- Urinal screens: ½” (13 mm) compact grade laminate (wall-hung, ceiling-hung, floor-anchored, or post-to-ceiling)
Material
Solidly fused compact grade laminate with matte-finish melamine surfaces, colored face sheets, and black phenolic-resin core. Edges are black. Integrally bonded construction for strength and moisture resistance.

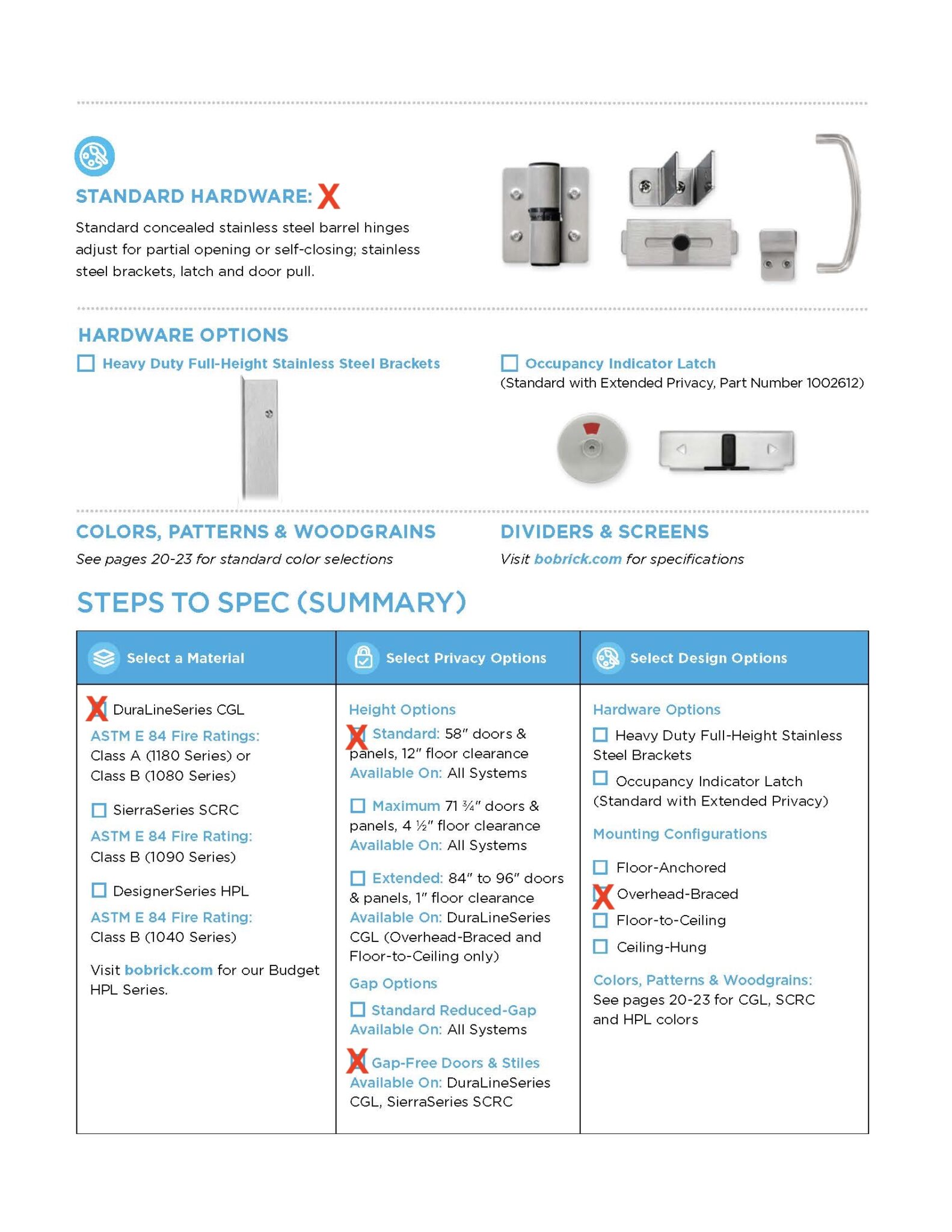

Standard Components
- Extruded anodized aluminum headrail — enclosed construction, sloping top, raised grip-resistant edge
- 18-8 Type-304 stainless steel commercial hardware (satin finish): barrel hinges, latch, keeper, clothes hook, mounting brackets, and door handles
- Adjustable balanced hinge — holds unoccupied door partially open or fully closed
- ADA-compliant operable hardware (one-hand operation; max 5 lb / 22.2 N force)
- Theft-resistant stainless steel pin-in-head Torx fasteners
- Corrosion-resistant leveling device with 4″ stainless steel shoes
- Optional gapless wall posts for routered gapless door attachment
Warranty
- 1-year guarantee on partitions, hardware, and mounting brackets against defects in material and workmanship
- 25-year limited warranty on DuraLineSeries compact grade laminate panels, doors, and stiles against breakage, corrosion, delamination, and factory workmanship when properly installed and normally used/serviced
