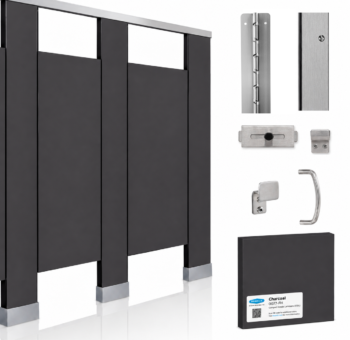

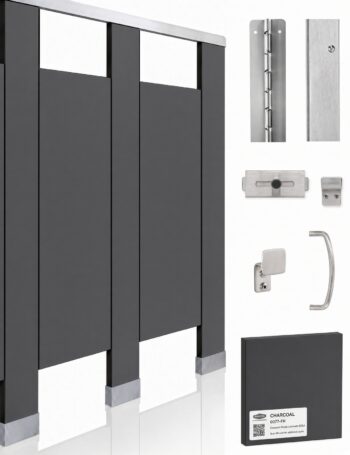

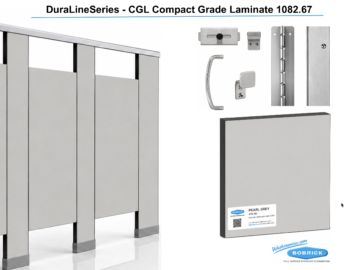

Description
Specification
Height: 58″ (1473 mm) doors and panels with 12″ (305 mm) floor clearance
Material
Stiles*
¾″ (19 mm) thick, solidly fused compact grade laminate with matte-finish melamine surfaces, colored face sheets, and black phenolic-resin core that are integrally bonded. Edges are black.
Standard Size Stiles:
- For compartments — 3″, 4″, 5″, 6″, 7″, 8″, 10″, 12″, 16″, 18″, 20″, or 24″ (76, 102, 127, 152, 179, 203, 254, 305, 406, 457, 508, 610 mm) wide
- For screens — 6″ (152 mm) wide
- Floor-anchored — 69″ (1753 mm) high
- Overhead-braced — 83″ (2108 mm) high
- Floor-to-ceiling anchored — up to 120″ (3048 mm) ceiling height
- Ceiling-hung — 83″ (2108 mm) high for 96″ (2438 mm) ceilings, or as required up to 120″ (3048 mm) ceilings
Panels
½″ (13 mm) thick, solidly fused compact grade laminate with matte-finish melamine surfaces, colored face sheets, and black phenolic-resin core that are integrally bonded. Edges are black.
Standard Size Panels:
- For compartments — up to 84″ (2134 mm) wide; 58″ (1473 mm) high
Urinal Screens
½″ (13 mm) thick, solidly fused compact grade laminate with matte-finish melamine surfaces, colored face sheets, and black phenolic-resin core that are integrally bonded. Edges are black.
Standard Size Urinal Screens:
- Wall-hung — up to 24″ (610 mm) wide; 42″ to 54″ (1067 to 1372 mm) high
- Ceiling-hung, floor-anchored, and post-to-ceiling — up to 60″ (1524 mm) wide; 58″ (1473 mm) high
Doors
¾″ (19 mm) thick, solidly fused compact grade laminate with matte-finish melamine surfaces, colored face sheets, and black phenolic-resin core that are integrally bonded. Edges are black.
Standard Size Doors:
- Inswing and outswing doors are standard 22″ to 37″ (559 to 940 mm) wide; 58″ (1473 mm) high
Posts (for 1083 Series screens only)
1¼″ (32 mm) square tubing; 18-8, Type-304, 18-gauge (1.2 mm) stainless steel with satin finish. Floor and ceiling connections are constructed of 18-8, Type-304, heavy-gauge stainless steel. Furnished in 120″ (3048 mm) lengths; cut in field to job specifications.
Standard Size Post:
- For 1083 Series post-to-ceiling screens only — 1¼″ (32 mm) square; 120″ (3048 mm); cut to required height in field

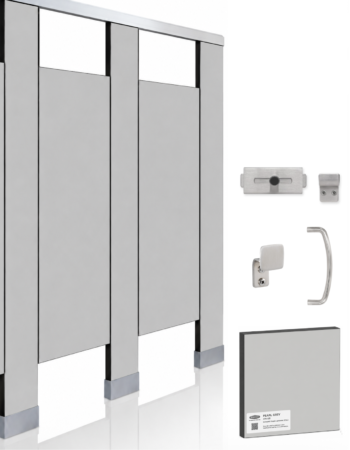

Headrail (for 1082 Series compartments only)
Extruded anodized aluminum. Enclosed construction with sloping top. Face has raised grip-resistant edge.
Designer’s Notes:
- Headrails with integral curtain tracks and hooks are available for compartments without doors. Optional vinyl curtains are available.
Wall Posts
1″ by 1½″ (25 by 38 mm) wide tubing; 18-8, Type-304, 16-gauge (1.6 mm) stainless steel with satin finish. 58″ (1473 mm) high, pre-drilled for door hardware.
Gapless Wall Posts
2¾″ by 1-15/16″ (70 by 49 mm) wide extrusion; anodized aluminum finish. 58″ (1473 mm) high, pre-drilled mounting holes; hinge drilling to be done in the field (detailed instructions included with wall post packet). Gapless wall posts enable the attachment of a routered gapless door to eliminate sightlines.
“`
